WebRTC Video Client :link:

Launch dev container

cd $HOME/repositories/oocular/ready/docs/holoscan bash launch_dev_container.bash

Create certificates

  • Create certificates to connect from a different machine cd $HOME/datasets/ready mkdir webrtc && cd webrtc openssl req -new -newkey rsa:4096 -x509 -sha256 -days 365 -nodes -out MyCertificate.crt -keyout MyKey.key #JUST PRESS ENTER

Launching webrtc_client

``` cd /workspace/volumes/ready/scripts/apis

RECORDER

bash webrtc.bash logger_name.log LOCAL DEGUG webrtc True

REPLAYER

bash webrtc.bash logger_name.log LOCAL DEGUG replayer False

bash webrtc.bash <$1:LOGGER_NAME.log> <$2:NET: LOCAL/PUBLIC> <$3:HOLOSCAN_LOG_LEVEL: OFF/DEBUG/TRACE/INFO/ERROR> <$4:SOURCE: webrtc/replayer> <$5:ENABLE_RECORDING: True/False>

edit scripts

vim webrtc.bash cd $HOME/repositories/oocular/ready/src/ready/apis/holoscan/webrtc ```

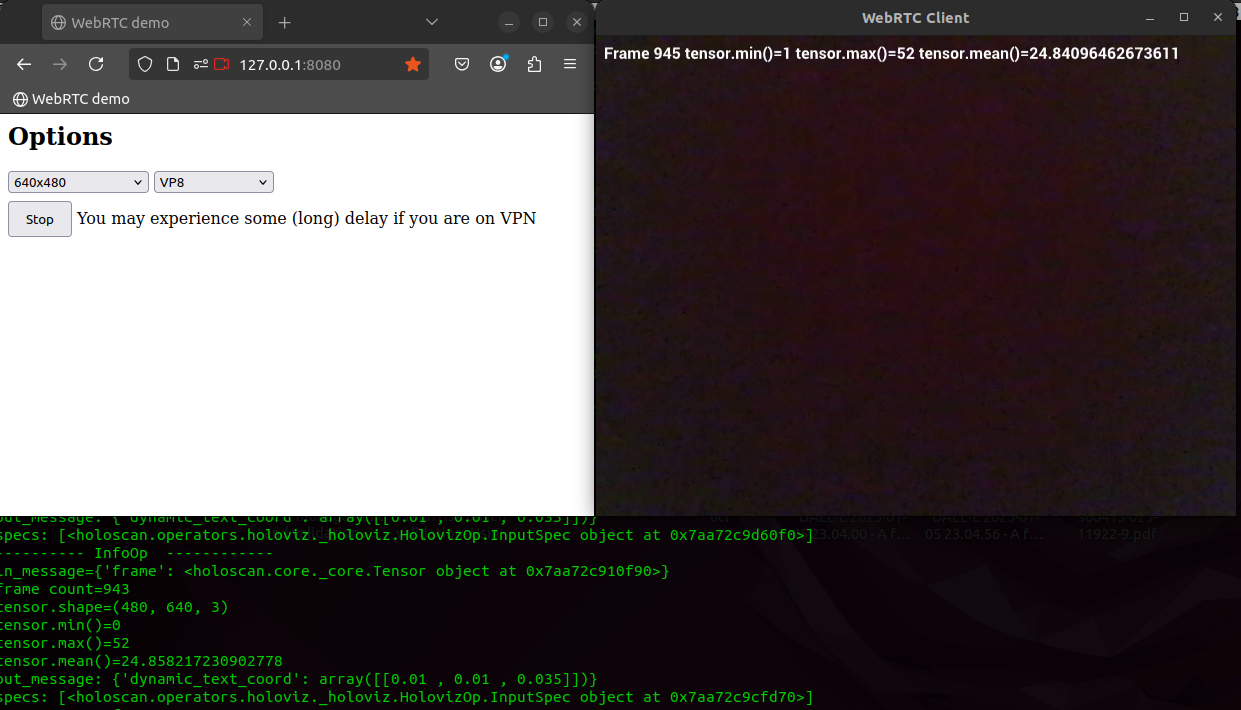

  • Application

    • Open browser on local network firefox http://127.0.0.1:8080/

    • video-resolution: 320x240, 640x480, 960x540, 1280x720, 1920x1080

    • video-codec: VP8, H264

    fig

  • On a different machine

    • Check your host IP $ifconfig wlp0s20f3: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet {YOU_HOST_IP: 000.000.0.000} netmask 255.255.255.0 broadcast 000.00.0.000

    • Open browser Go to chrome://flags, search for the flag unsafely-treat-insecure-origin-as-secure, enter the origin you want to treat as secure such as http://{YOUR HOST IP}:8080, enable the feature and relaunch the browser. See further details here.

  • Graph structure for webrtc_client.py mermaid flowchart LR subgraph Server WebRTCClientOp --> HolovizOp WebRTCClientOp --> InfoOp InfoOp --> HolovizOp WebServer end subgraph Client Webcam --> Browser Browser <--> WebRTCClientOp Browser <--> WebServer end

See more flow_benchmarking

References

  • Visit the SDK User Guide for step-by-step documentation of this example.
  • https://github.com/nvidia-holoscan/holoscan-sdk/tree/main/examples/bring_your_own_model
  • https://github.com/nvidia-holoscan/holohub/tree/e1453b36a652682865d6d9d807d565435ca4f16f/applications/ssd_detection_endoscopy_tools
